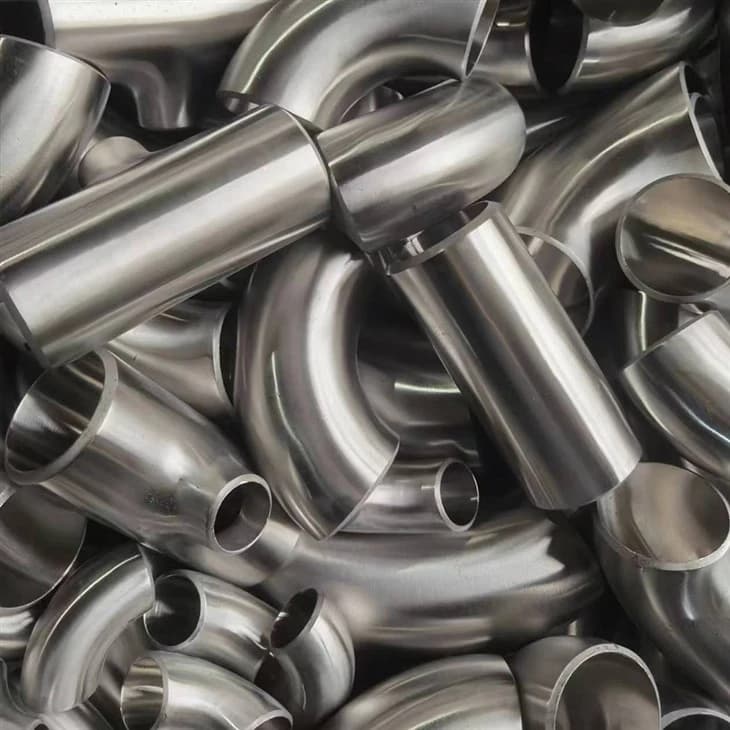

Peb cov 2 inch stainless steel pipe fittings yog ua los ntawm 304 thiab 316 stainless steel, thiab lawv tag nrho ntsuas tau raws li ASME B16.9 thiab ASTM A312 cov qauv. Tsis muaj kev txiav ces kaum - txhua qhov kuaj tawm.
Cov 316 muaj 2-3% molybdenum hauv kev sib xyaw. Qhov ntxiv me? Nws ua rau muaj qhov sib txawv loj hauv dej ntsev. Zoo dua ntawm kev tawm tsam corrosion dua 304, zoo li 70% tsawg dua rusting dhau sijhawm.
Thaum nws kub 200°F (93°C) sab nraud, cov fittings no tuaj yeem nqa 150 psi (10 bar) ntawm siab yooj yim. Thiab lawv tsis tawg mus txog thaum siab nce dhau 600 psi. Muaj zog heev, yog kuv nug koj. Qhov ntawd yog 30% muaj zog dua li feem ntau lwm tus hauv kev ua lag luam tuaj yeem ua tau.
Cov xov tau ua raws li ANSI/ASME B1.20.1 specs, yog li lawv kaw nruj. Peb kuaj lawv, thiab lawv xau tsawg dua 0.1 cc txhua feeb, uas yog tsis muaj dab tsi.
Txhua qhov fitting tau ua tiav los ntawm CNC machines, yog li cov chav tseem ceeb raug rau hauv ±0.005 inches.
Peb siv electropolishing kom tau qhov chaw du, mus rau Ra 1.6μm. Cov txheej txheem no tshem tawm cov hlau dawb, ua rau lawv 40% ntau resistant rau corrosion dua li yog tias peb ua standard polishing xwb.
Koj tuaj yeem tau txais lawv nrog socket weld lossis threaded ends. Cov chav weld tau npaj raws li AWS D1.1 cov qauv, yog li cov joints tuav tau zoo.
Thiab peb kuaj txhua qhov fitting nrog dej siab - 1.5 npaug ntawm lawv qhov siab ua haujlwm, rau 60 vib nas this - kom paub tseeb tias lawv ruaj khov.

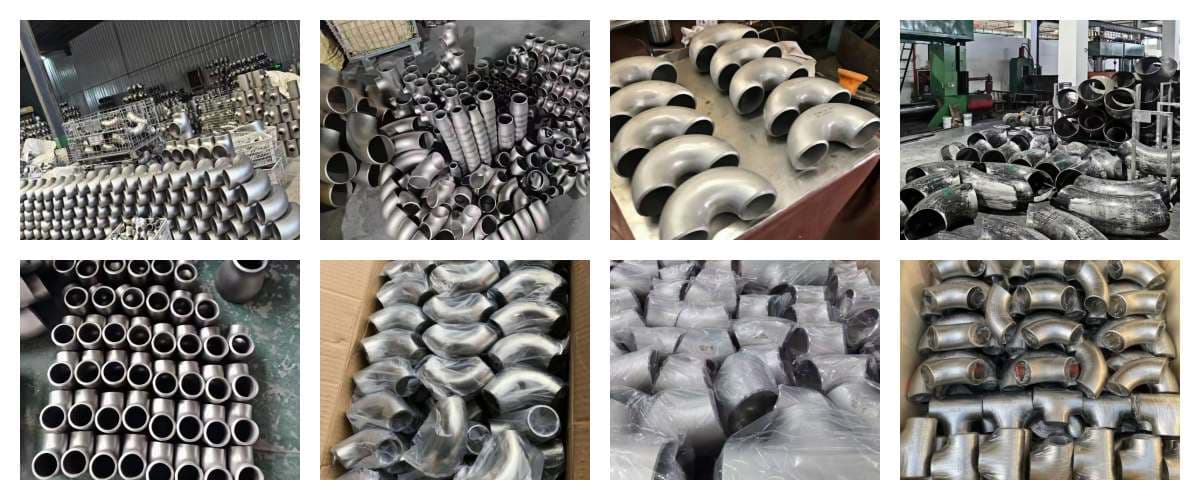

Peb lub hoobkas khiav nrog 12 CNC machining centers thiab 8 automated assembly stations. Qhov kev teeb tsa no cia peb tsim tau 50,000 units txhua lub hlis yam tsis muaj kev nyuaj.
Qhov ntawd txaus los tswj cov kev txiav txim loj loj sai. Peb khaws 200 tons ntawm 304 thiab 316 stainless steel hauv cov khoom khaws cia, yog li cov kev txiav txim li niaj zaus tuaj yeem hloov tau sai.
Txhua pawg mus txog ultrasonic testing thiab visual checks, ua raws li ASTM E165 cov qauv. Yog tias koj xav tau cov ntawv qhia kuaj, cia li nug - peb muaj lawv.
Peb lub lab hauv tsev yog ISO 17025 accredited, yog li koj paub tias cov khoom kuaj tau raug.
1.Yog tias koj txiav txim ntau dua 1,000 units wholesale, peb yuav muab 7% luv nqi. Ntxiv rau, peb yuav xa khoom pub dawb mus rau cov chaw nres nkoj loj hauv Europe thiab North America.
2.Peb sawv tom qab peb txoj haujlwm nrog 10-xyoo warranty tiv thaiv ib qho kev ua tsis zoo los ntawm kev tsim khoom. Yog tias ib qho fitting ua tsis tau vim li cas nws tau tsim los yog cov khoom siv - nyob rau hauv kev siv ib txwm - peb yuav saib xyuas nws.
3.Thiab yog tias muaj 2 inch stainless steel pipe fittings twb tsis ua raws li cov qauv teev tseg thaum lwm tus kuaj, peb yuav hloov lawv tag nrho hauv 48 teev tom qab tau txais daim ntawv kuaj. Peb tseem yuav them cov kev poob uas los ntawm nws.
Cov Ntsiab Lus Parameter
Nominal Pipe Size
2 inches (Raws li ASME B36.10M, lub nrawm sab nraud yog kwv yees li 60.3 mm)
Cov khoom yog feem ntau 304 thiab 316 stainless steel, raws li ASTM A240/A240M cov qauv
Cov Fittings Hom
Muaj ob peb hom elbows, suav nrog 90-degree long-radius elbows, uas muaj ib lub voj voog li 1.5 npaug ntawm nominal pipe size, xws li 3 inches (76.2 mm). Short-radius elbows muaj ib lub voj voog li 1 npaug ntawm nominal size, xws li 2 inches (50.8 mm). Kuj muaj 45-degree elbows.

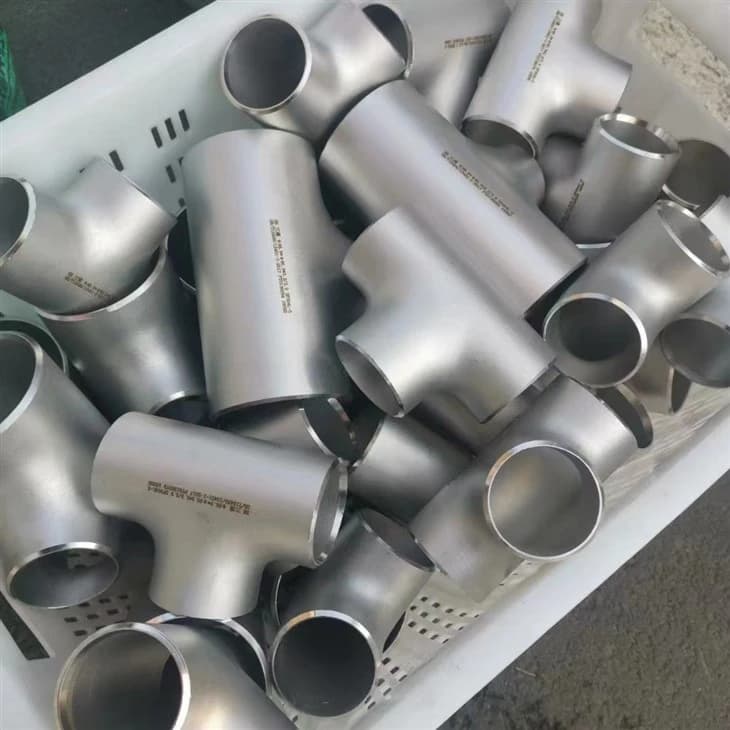

Tees tuaj yeem yog equal tees lossis reducing tees.
Cov kev sib txuas tuaj yeem ua threaded lossis socket weld type.
Qib Siab
Rau 304 stainless steel fittings, feem ntau tuaj yeem tiv tau txog 150 psi (10.34 bar) ntawm chav kub (kwv yees li 20°C).
316 stainless steel fittings tswj tau txog 150 psi (10.34 bar) ntawm chav kub, tib yam li 304. Tab sis qhov lawv ci ntsa iab yog hauv cov xwm txheej kub lossis qhov chaw muaj corrosion ntau - lawv tuav tau zoo dua. Qhov no ua rau lawv yog ib qho kev xaiv ruaj khov thaum muab nrog 2 inch stainless steel pipe fittings hauv cov kev teeb tsa nyuaj.
Cov Qauv Kev Tsim
Kev tsim feem ntau ua raws li ASME B16.9 rau cov fittings factory-made wrought steel butt-welding thiab ASME B16.11 rau cov fittings forged steel.
Cov txheej txheem welding ua raws li AWS D1.6 yog tias muaj feem cuam.
Cov Qauv Xov
Cov fittings threaded feem ntau ua raws li ASME B1.20.1, xws li NPT xov.
Cov Lus Nug Nquag Nug
Nug: Koj puas txhawb OEM lossis ODM?
A: Tau kawg! Peb txais tos OEM thiab ODM kev koom tes, muaj pab neeg technical txawj ntse, thiab tuaj yeem tsim khoom raws li koj cov duab lossis cov kev xav tau tshwj xeeb.
Nug: Koj puas tuaj yeem npaj kev thauj mus los?
A: Yog. Peb muaj kev koom tes ntev nrog cov neeg xa khoom ua lag luam hiav txwv thiab tsheb ciav hlau paub, thiab tuaj yeem npaj txoj kev thauj zoo tshaj rau koj, nrog hnub xa khoom sai tshaj plaws thiab kev pabcuam zoo, pab koj txuag cov nqi thauj.
Nug: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Yog tias muaj khoom tam sim, feem ntau xa hauv 7 hnub; yog tias tsis muaj khoom khaws cia, feem ntau yuav siv li 15-20 hnub los ua kom tiav kev tsim khoom thiab npaj cov khoom khaws cia.
Nug: Koj puas muab cov qauv?
A: Peb zoo siab muab cov qauv pub dawb, tab sis tus nqi thauj yuav tsum them los ntawm koj.
