Khoom Ua Ntej Saib

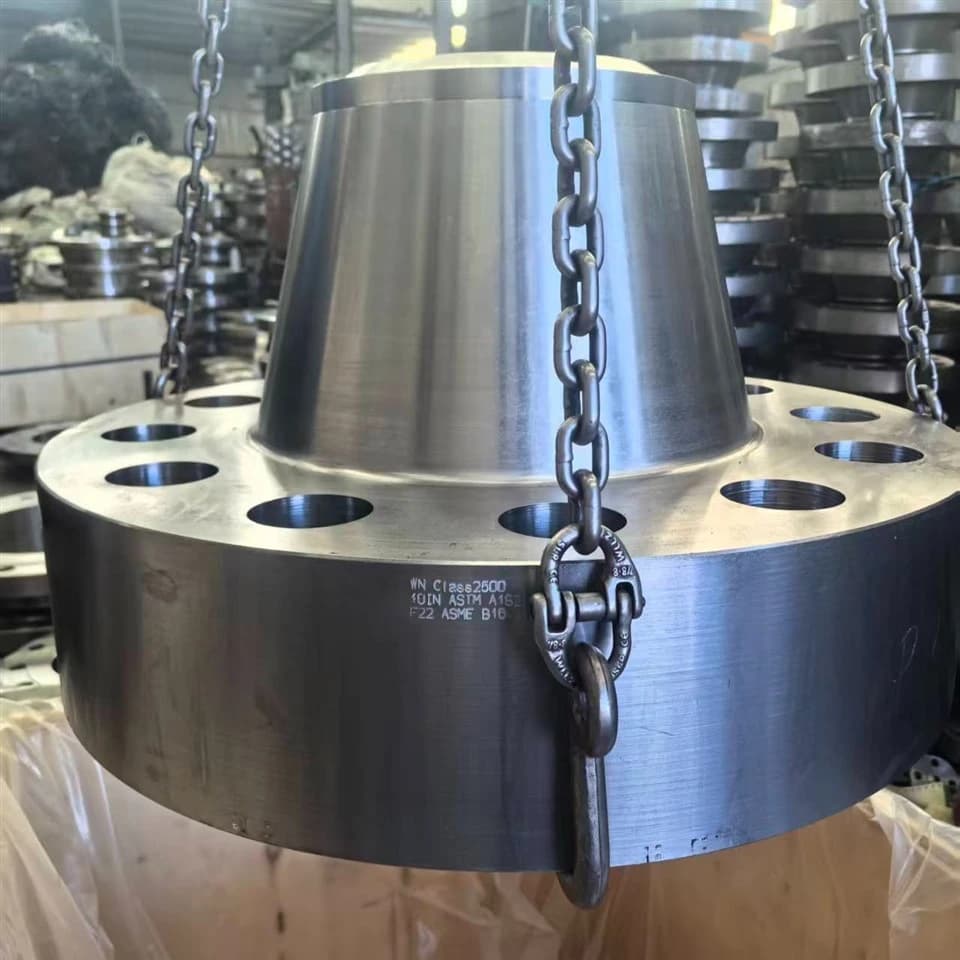

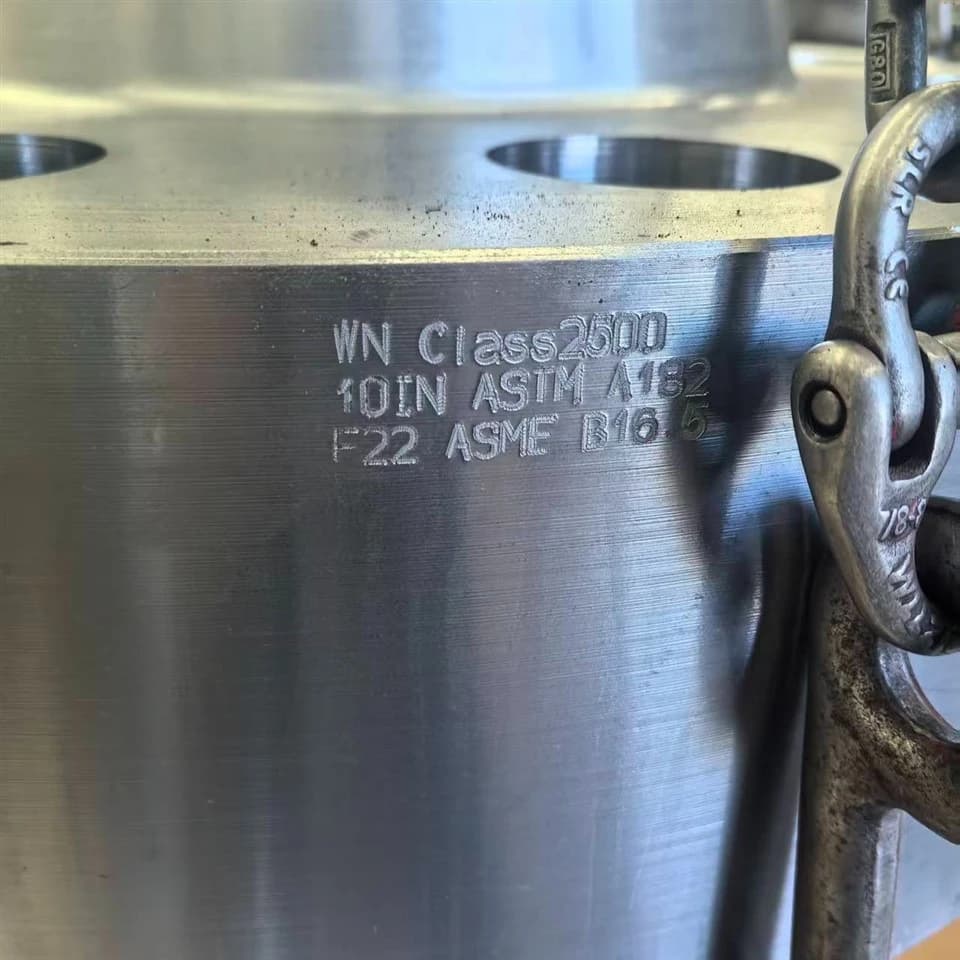

Lub ASTM A182 F22 Alloy Steel Flanges no muaj pressure rating ntawm 2500 psi thiab yog ua los ntawm ib khoom tshwj xeeb, F22/12Cr2Mo. Nws ua raws li ASTM A182 F22 qauv thiab muaj excellent corrosion resistance thiab weldability. Manufacturing standards ua raws li ASTM B16.5, thiab nws yog siv dav nyob rau hauv petrochemical industry.
Cov Ntsiab Tseem Ceeb
Mill Test Report (MTR) Muaj
High-temperature thiab high-pressure reaction pipelines nyob rau hauv hydrocracking thiab hydrorefining units - suav nrog reactor inlet thiab outlet piping, ntxiv rau high-temperature oil thiab gas pipelines nyob rau hauv reforming units. F22 alloy steel's resistance rau hydrogen corrosion thiab high-temperature creep, ua ke nrog RTJ metal ring seals ntawm high pressure flanges, zoo tiv thaiv leakage risks.
Superheater thiab reheater outlet pipelines nyob rau hauv power plant boilers, high-temperature high-pressure steam main pipelines, thiab turbine inlet piping. F22 (2.25Cr-1Mo) alloy steel muab excellent high-temperature strength thiab resistance rau steam oxidation - ua rau nws yog ib khoom standard nyob rau hauv supercritical thiab subcritical power plant systems. Ua ke nrog Class 2500 high pressure flanges thiab butt-welded construction, nws tiv thaiv thermal cycling thiab pressure fluctuations.
High-temperature coal gasification thiab syngas transmission pipelines nyob rau hauv coal chemical plants, high-pressure synthesis towers thiab ammonia separation systems nyob rau hauv ammonia synthesis units. Cov xwm txheej no koom nrog hydrogen thiab sulfur-containing media ntawm kub siab thiab siab, xav tau exceptional material strength, corrosion resistance, thiab sealing reliability. Qhov high impact toughness ntawm F22 Class 3 nrog RTJ sealing surfaces ntawm high pressure flanges yog tseem ceeb rau kev ua haujlwm nyab xeeb.
Connecting flanges rau high-pressure wellhead equipment thiab Christmas trees, high-pressure oil thiab gas transmission pipelines nyob rau hauv deep-sea thiab offshore platforms. Class 2500 yog ib qho siab tshaj plaws pressure ratings nyob rau hauv ASME B16.5 qauv rau high pressure flanges. Ua ke nrog RTJ sealing surfaces, nws ua tiav zero-leakage metal-to-metal seals nyob rau hauv high pressure, vibration, thiab harsh ib puag ncig - ua rau nws yog tus preferred xaiv rau high-risk, high-pressure oil thiab gas applications.
Peb nkag siab tias reliability yog yam tseem ceeb rau wholesalers. Yog li ntawd, peb cog lus qhia tseeb rau txhua qhov order:
Thawj, Quality Guarantee: Yog tias muaj ib lub pipe tsis ua raws li ASME B16.5 qauv - txawm yog dimensional deviations, surface defects, lossis corrosion resistance issues - peb yuav hloov nws dawb.
Thib ob, Fast Delivery: Peb xa tawm hauv 48 teev. Rau cov order loj lossis custom specifications, peb ua tiav hauv 7-10 hnub ua haujlwm - ceev tshaj peb cov neeg sib tw qeeb.
Thib peb, Easy Documentation: Peb xa rau koj tag nrho cov ntaub ntawv tsim nyog ua ntej - ASTM A182 certification, EU Certificate of Conformity (CoC), Material Safety Data Sheet (MSDS), thiab Material Test Report (MTR). Koj yuav tsis tas caum peb rau daim ntawv thaum cuam tshuam nrog customs lossis customer audits - koj yuav muaj tag nrho cov ntaub ntawv tsim nyog txij hnub ua ntej.
Thib plaub, 24/7 Support: Koj tus account manager tshwj xeeb paub lus Askiv zoo thiab muaj kev paub dav dav txog ASTM A182 qauv. Xav tau kev pab nrog specifications, order updates, lossis custom cutting services? Lawv teb hauv ib teev.
